My 2nd Computer 1978-1988
Z80 running at 2mhz

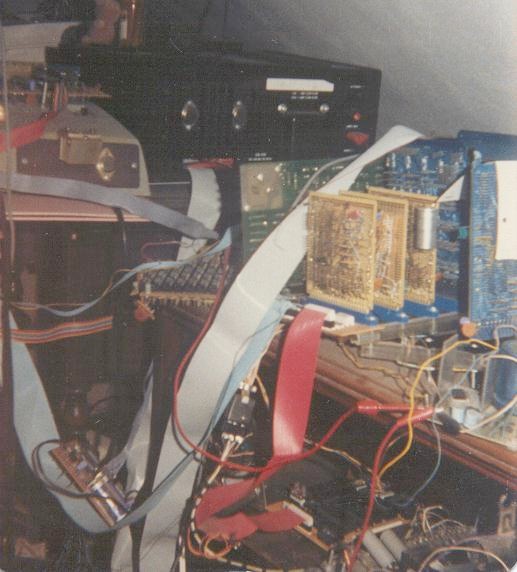

The gray box is the main controller.  It could take over control of the buss and slow down, or step the CPU.

The Black box is a Heathkit Dual Floppy holder.  I could not get their control card to work in my system, so I designed my own which is the first tall blue card.

The green board is a video card.  The only card I purchase.  I didn't have enough know how to make an analog card.  It used an S100 buss. My buss was wired as I need it.

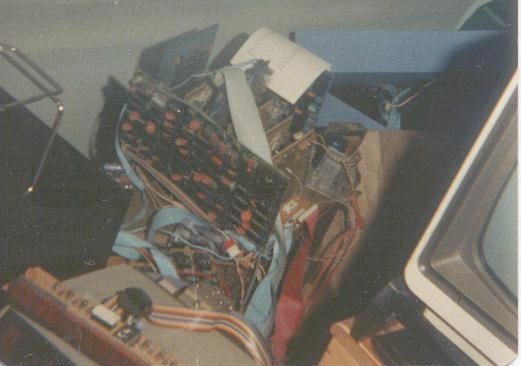

The board with all the chip is my first 4k of memory. Each chip is 1x1k.  Its the only part I used from my first computer, an Intel 8080, it ran from Jul 1976 - 1978

The first white board is the z80 CPU board. The 3rd was a memory board that was always on.  It was my OS.  Later the I used EPROM.

The card in the cable it a real time clock.  The same chip that was later used in the AT type computers.

The red cable goes to the math processor board.

It had a total of 27k of ram, with 4 2k EPROM.  1k of video memory.

I wrote a word processor, an accounting program, some games, assembler, debugger and dissembler.  And of course the OS.

Later I bought a Commodore 64.  I connect the 2 computer through a parallel port.  I wrote a assembler on the z80 for the 64.  My 64 debugger was the z80.

The computer worked for 10 years then the wire wrap started to fail.  It was a sad day when I turned it off the last time.

Other parts not shown:
1. Speech unit
2. EPROM burner
3. A 8 digit led display (Lower left of second picture)
4. Full keyboard
5. Printer a daisywheel. Which I still have.
